GeniACS and NATed devices

1

Hello!

I’ve installed GenieACS version 1.2.9 on Debian 11 and I want to handle some router (TP-Link TL-WR850) behind a NAT.
I tried stunserver and coturn STUN servers, but for some reason it doesn’t work.

In the Genieacs UI I added the cwmp.udpConnectionRequestPort parameter as shown in the following picture:

image1887×679 90 KB

I ran the stunserver as follows:

./stunserver --primaryinterface ens18 --reuseaddr --verbosity 3

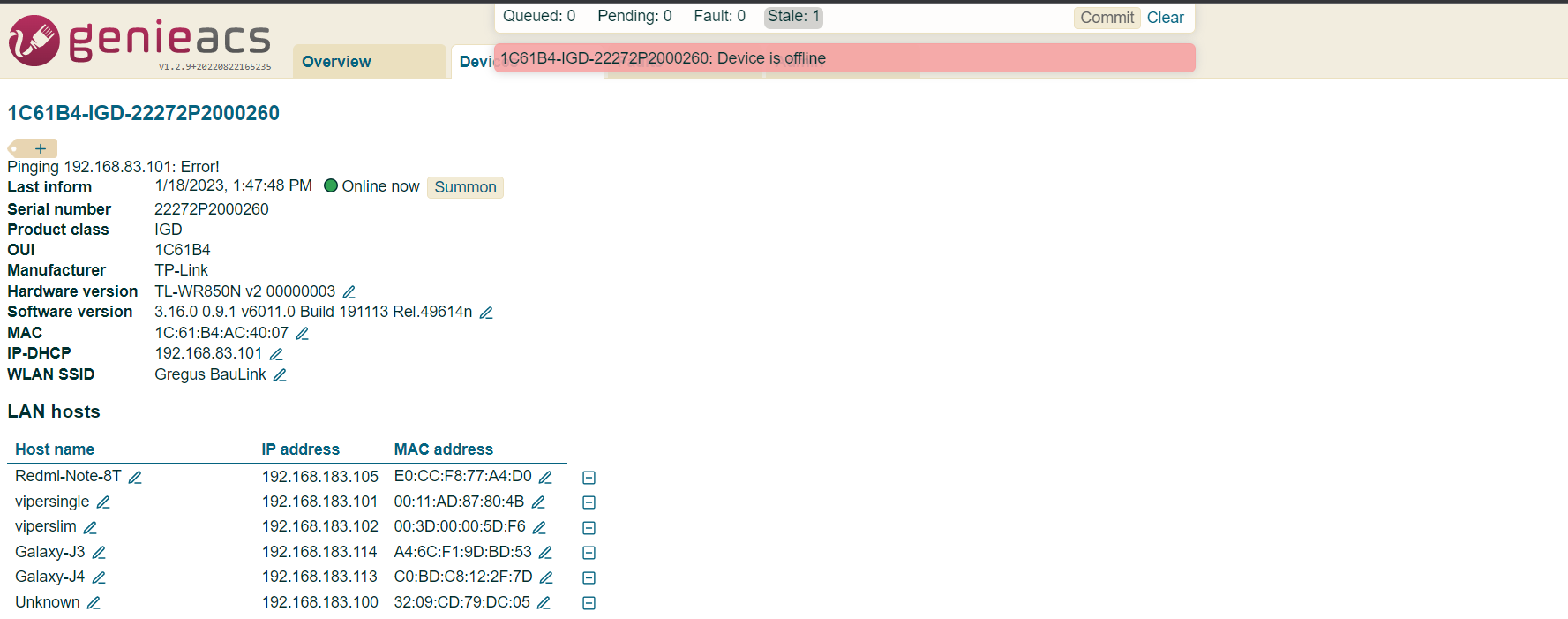

The error in GenieACS is:

image1777×701 79.6 KB

Can You help me to resolve this problem?

Best Regards,

Zoltan

2

GenieACS and STUN server are installed on the same server.

I have 2 scenario:

image1119×523 17.5 KB

SCENARIO 1- the client router is connected behind a DHCP server - two-way communication does not work with this (GenieACS reads the data, but I cannot change anything)
SCENARIO 2 - the client router is connected directly with PPPoE. that’s all right.

In the case of SCENARIO 1, I see in the base station router that theoretically there is communication on port 3478 between the client router and GenieACS.

image854×681 21.9 KB
