How to display WiFi information in device page

spurja · June 23, 2024, 5:18pm

Hi Everyone,

I am trying to configure WiFi information table in the device page and I have set a label = “WiFi Information” with a “parameter-table” in the Admin → edit device page which will poll 2 different parameters values in the table i.e
Device.WiFi.SSID..SSID,
Device.WiFi.SSID..BSSID,
Device.WiFi.SSID..Status,
Device.WiFi.Radio..Channel,
Device.WiFi.Radio..CurrentOperatingChannelBandwidth,
Device.WiFi.Radio..OperatingFrequencyBand,
Device.WiFi.Radio.*.TransmitPower

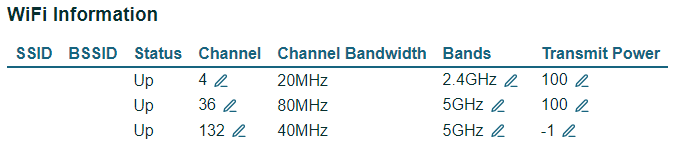

After saving the config, the expected information was not displayed in the device page of a device. For an example, if parameter is set to Device.WiFi.SSID, this will only display SSID, BSSID, Status and all the remaining key/values will be blank, whereas if parameter: Device.WiFi.Radio, it will only display radio information in the device page. There was no luck with “Device.WiFi” in the parameter and the Device.WiFi.* parameter is also defined in the parent components table too. Please see the image.

Please see the edit device page

- type: "'tags'"
- type: "'ping'"
- type: "'parameter-list'"
  parameters:
    - element: "'span.inform'"
      label: "'Last inform'"
      parameter: DATE_STRING(Events.Inform)
      type: "'container'"
      components:
        - type: "'parameter'"
        - chart: "'online'"
          type: "'overview-dot'"
        - type: "'summon-button'"
          parameters:
            - InternetGatewayDevice.DeviceInfo.HardwareVersion
            - InternetGatewayDevice.DeviceInfo.SoftwareVersion
            - InternetGatewayDevice.WANDevice.*.WANConnectionDevice.*.WANIPConnection.*.MACAddress
            - InternetGatewayDevice.WANDevice.*.WANConnectionDevice.*.WANIPConnection.*.ExternalIPAddress
            - InternetGatewayDevice.LANDevice.*.WLANConfiguration.*.SSID
            - InternetGatewayDevice.LANDevice.*.WLANConfiguration.*.KeyPassphrase
            - InternetGatewayDevice.LANDevice.*.Hosts.Host.*.HostName
            - InternetGatewayDevice.LANDevice.*.Hosts.Host.*.IPAddress
            - InternetGatewayDevice.LANDevice.*.Hosts.Host.*.MACAddress
            - Device.IP.Interface.*
            - Device.WiFi.*
    - label: "'Serial number'"
      parameter: DeviceID.SerialNumber
    - label: "'Product class'"
      parameter: DeviceID.ProductClass
    - label: "'OUI'"
      parameter: DeviceID.OUI
    - label: "'Manufacturer'"
      parameter: DeviceID.Manufacturer
    - label: "'Hardware version'"
      parameter: Device.DeviceInfo.HardwareVersion
    - label: "'Software version'"
      parameter: Device.DeviceInfo.SoftwareVersion
    - label: "'WAN IP address'"
      parameter: Device.IP.Interface.1.IPv4Address.1.IPAddress

- label: "'WiFi Information'"
  parameter: Device.WiFi.SSID
  type: "'parameter-table'"
  childParameters:
    - label: "'SSID'"
      parameter: SSID
    - label: "'BSSID'"
      parameter: BSSID
    - label: "'Status'"
      parameter: Status
    - label: "'Channel'"
      parameter: Channel
    - label: "'Channel Bandwidth'"
      parameter: CurrentOperatingChannelBandwidth
    - label: "'Bands'"
      parameter: OperatingFrequencyBand
    - label: "'Transmit Power'"
      parameter: TransmitPower
- label: "'LAN hosts'"
  parameter: Device.Hosts.Host
  type: "'parameter-table'"
  childParameters:
    - label: "'Host name'"
      parameter: HostName
    - label: "'IP address'"
      parameter: IPAddress
    - label: "'MAC address'"
      parameter: MACAddress
- element: "'div'"
  type: "'container'"
  components:
    - element: "'h3'"
      type: "'container'"
      components:
        - "'Faults'"
    - type: "'device-faults'"
- element: "'div.container-full-width'"
  type: "'container'"
  components:
    - element: "'h3'"
      type: "'container'"
      components:
        - "'All parameters'"
    - type: "'all-parameters'"
- type: "'device-actions'"

I have no clue on how to work with two different parameters models so the information can be populated in the WiFi information.
Can anyone please advise?

GenieACS version = 1.2.9

Thanks.

dustin · June 24, 2024, 4:13pm

Hi,

If I understand you correctly, your SSID value could come from more than one parameter location.

You could create a virtual parameter to store whichever parameter exists and then use that virtual parameter in your WiFi table.

Virtual Parameters

Regards,
DR

akcoder · June 24, 2024, 6:23pm

The problem with vparams is they don’t support instances. So you will end up with stuff like VirtualParameter.SSID1, VirtualParameter.Passphrase1, VirtualParameter.SSID2, …

spurja · June 24, 2024, 8:54pm

Hi,
@dustin Yes correct, the SSID and Radio comes from a different child parameters, I didn’t notice that genie will count this as two different child parameters even these child parameters comes from a single/ parent data parameter
Device.Wifi (parent)
–>Device.Wifi.SSID (Child)
→ Device.WiFi.Radio (Child)
. Yes, so likely the solution would be to use virtual parameters to put them together in the WiFi table.

@akcoder Thanks, I was looking into this virtual parameters, probably will shine some more ideas to play with the key/value pairs on the child parameters.

Thank you for your information.

Regards,
Shishir

Figaro · June 25, 2024, 10:31pm

Hi, im using this config on the device page, maybe you can use some of it:

- type: "'tags'"
- type: "'ping'"
- type: "'parameter-list'"
  parameters:
    - element: "'span.inform'"
      label: "'Last inform'"
      parameter: DATE_STRING(Events.Inform)
      type: "'container'"
      components:
        - type: "'parameter'"
        - chart: '"typeONT"'
          type: "'overview-dot'"
        - type: "'summon-button'"
          parameters:
            - InternetGatewayDevice.DeviceInfo.HardwareVersion
            - InternetGatewayDevice.DeviceInfo.SoftwareVersion
            - InternetGatewayDevice.WANDevice.*.WANConnectionDevice.*.WANIPConnection.*.ExternalIPAddress
            - InternetGatewayDevice.LANDevice.*.WLANConfiguration.*.SSID
            - InternetGatewayDevice.LANDevice.*.WLANConfiguration.*.PreSharedKey.*.KeyPassphrase
            - InternetGatewayDevice.LANDevice.*.Hosts.Host.*.HostName
            - InternetGatewayDevice.LANDevice.1.Hosts.Host.*.Active
            - InternetGatewayDevice.LANDevice.*.Hosts.Host.*.IPAddress
            - InternetGatewayDevice.LANDevice.*.Hosts.Host.*.MACAddress
            - InternetGatewayDevice.LANDevice.1.Hosts.Host.*.X_HW_RSSI
            - InternetGatewayDevice.LANDevice.1.LANEthernetInterfaceConfig
            - InternetGatewayDevice.UserInterface.X_HW_WebUserInfo
            - InternetGatewayDevice.WANDevice.1.X_GponInterafceConfig.RXPower
    - label: "'Serial number'"
      parameter: DeviceID.SerialNumber
    - label: "'Product class'"
      parameter: DeviceID.ProductClass
    - label: "'WEB User'"
      parameter: InternetGatewayDevice.UserInterface.X_HW_WebUserInfo.2.UserName
    - label: "'WEB Pass'"
      parameter: InternetGatewayDevice.UserInterface.X_HW_WebUserInfo.2.Password
    - label: "'Hardware version'"
      parameter: InternetGatewayDevice.DeviceInfo.HardwareVersion
    - label: "'Software version'"
      parameter: InternetGatewayDevice.DeviceInfo.SoftwareVersion
    - editable: false
      label: "'IP'"
      parameter: InternetGatewayDevice.WANDevice.1.WANConnectionDevice.1.WANIPConnection.1.ExternalIPAddress
      writable: false
    - label: "'WLAN SSID 2.4'"
      parameter: InternetGatewayDevice.LANDevice.1.WLANConfiguration.1.SSID
    - label: "'WLAN 2.4 passphrase'"
      parameter: InternetGatewayDevice.LANDevice.1.WLANConfiguration.1.PreSharedKey.1.KeyPassphrase
    - label: "'WLAN SSID 5.8'"
      parameter: InternetGatewayDevice.LANDevice.1.WLANConfiguration.5.SSID
    - label: "'WLAN 5.8 passphrase'"
      parameter: InternetGatewayDevice.LANDevice.1.WLANConfiguration.5.PreSharedKey.1.KeyPassphrase
    - label: '"ACCESO WEB"'
      parameter: InternetGatewayDevice.X_HW_Security.AclServices.HTTPWanEnable
    - label: '"POTENCIA ONT"'
      parameter: InternetGatewayDevice.WANDevice.1.X_GponInterafceConfig.RXPower
- label: "'LAN Ethernet'"
  parameter: InternetGatewayDevice.LANDevice.1.LANEthernetInterfaceConfig
  type: "'parameter-table'"
  writable: false
  childParameters:
    - label: "'Port Ethernet'"
      parameter: Name
    - label: "'Port Link Status'"
      parameter: Status
    - label: "'Port Link Speed'"
      parameter: MaxBitRate
      writable: false
- label: "'LAN hosts'"
  parameter: InternetGatewayDevice.LANDevice.1.Hosts.Host
  type: "'parameter-table'"
  childParameters:
    - label: "'Host name'"
      parameter: HostName
    - label: "'IP address'"
      parameter: IPAddress
    - label: "'MAC address'"
      parameter: MACAddress
    - label: "'Activo'"
      parameter: Active
    - label: "'Señal'"
      parameter: X_HW_RSSI
- element: "'div'"
  type: "'container'"
  components:
    - element: "'h3'"
      type: "'container'"
      components:
        - "'Faults'"
    - type: "'device-faults'"
- element: "'div.container-full-width'"
  type: "'container'"
  components:
    - element: "'h3'"
      type: "'container'"
      components:
        - "'All parameters'"
    - limit: 200
      type: "'all-parameters'"
- type: "'device-actions'"

spurja · July 1, 2024, 12:23pm

Thanks @Figaro
I just used alias value to match the different table information via declare method in the provision.
please see below.
table 1
Device.WiFi.SSID..Alias =
table 2
Device.WiFi.Radio..Alias =
